Compare 2813 vs 2836 Automatic Mechanical Clone Watch Movement
Choosing between the 2813 and 2836 clone movements? This guide compares specs, smoothness, and value.
Key facts
- The 2813 runs at 21,600 bph (6 bps), while the 2836 runs at 28,800 bph (8 bps), making the 2836 noticeably smoother.
- The 2813 has a date only; the 2836 adds a day function as well as the date.
- Both clone movements are 25.6 mm in diameter; the 2813 is 5.4 mm tall and the 2836 is 5.05 mm.
- The 2836 costs roughly $30 to $50 more than the 2813, mainly because of its higher beat rate.
- Hour hands fit both, but minute and seconds hands differ: 1.00 mm and 0.17 mm on the 2813 versus 0.90 mm and 0.25 mm on the 2836.
Comparing the 2813 and 2836 movements you can clearly see some similarity between them. See our full 2813 movement review and 2836 movement review for detailed photos and specs. The date position sits above the movement making both of these easy to fit a date wheel overlay as they clear the top of the movement.
Now on the price, the 2813 is about 1/3 of the cost of the 2836. Making it around $30 - $50 USD more. The 2813 movement is 21,600 bph (6 bps) however the 2836 is a 28,800 bph (8 bps) movement. The price point comes from the high beats from the 2836 movement. Making the 2836 movement a lot smoother.
2813 vs 2836 Technical Specification
Below outlined is the tech specification comparing the both movements together including hand sizes, beats and features
| Movement | 2813 Clone | 2836 Clone |
| Beats Per Hour | 21,600 bph | 28,800 bph |
| Beats Per Second | 6 | 8 |
| Diameter | 25.6 mm | 25.6 mm |
| Height | 5.4 mm | 5.05 mm |
| Hour Hand | 1.52 mm | 1.50 mm |
| Minute Hand | 1.00 mm | 0.90 mm |
| Second Hand | 0.17 mm | 0.25 mm |
| Feature | Date | Day / Date |

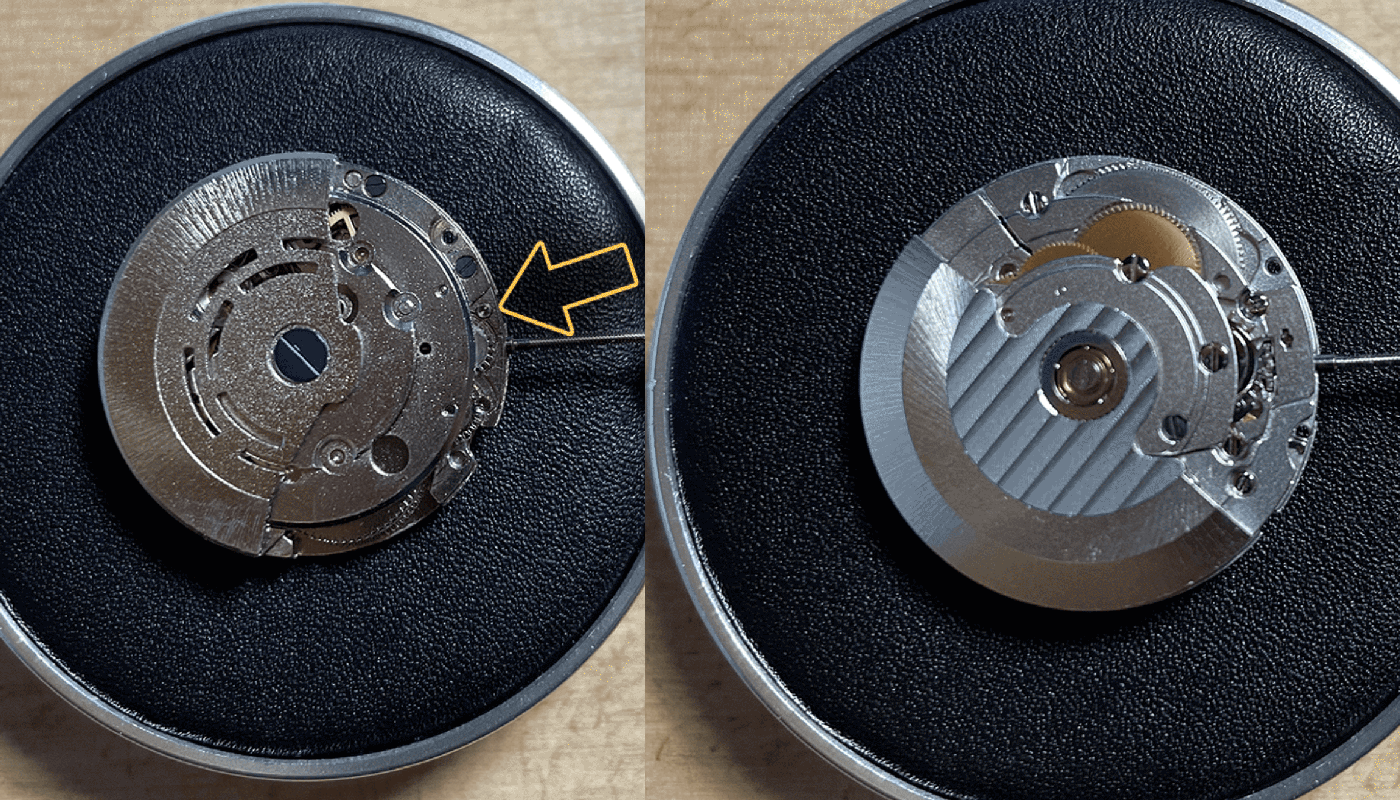

2813 vs 2836 Stem Removal
Pictured is the back of the 2813 - Removal of the stem on this movement is easier than the 2836. You have the crown in winding position then and press the little hole (with yellow arrow) with tweezer just a just pull the stem out. On the 2836 movement pictured (right) you must use a small screwdriver and gently push into the gap. The rotor noise is quicker on the 2836 movement however it is still noisy. The noise on the 2813 is a lot nosier.

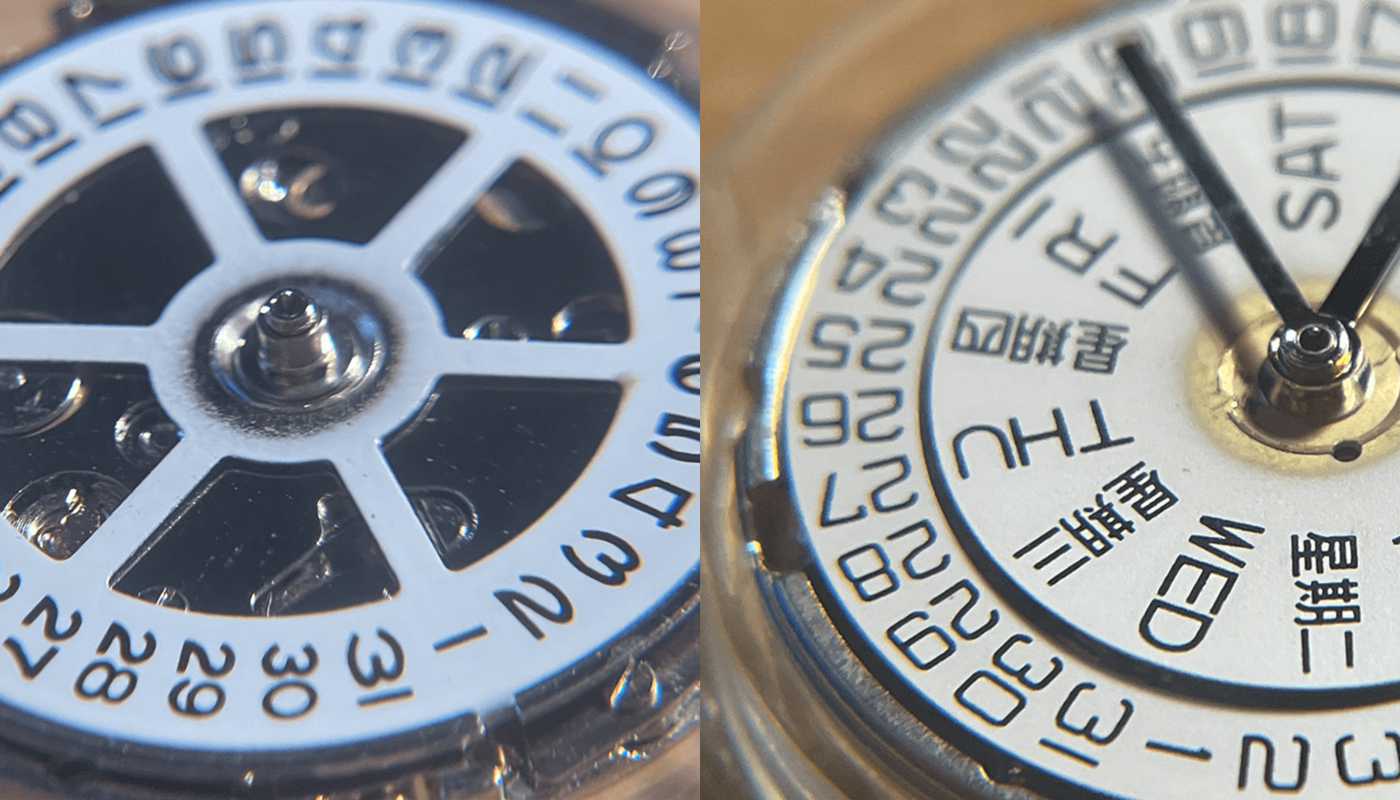

Close Up and Date Wheel
From both the close ups you can see the 2836 (right) has a day function also which is the larger benefit over the 2813 movement if a day feature is required. The date feature in on both movements and works very similar. The Rolex date font between 1 and 19 on the 2813 it seems to drop to San Serif font making it a bit strange however the 2836 movement i have here is a basic font style.
One benefit of the 2813 movement is it is similar height to the 2836 movement with the date wheel above the movement making it easier to apply a date wheel overlay.

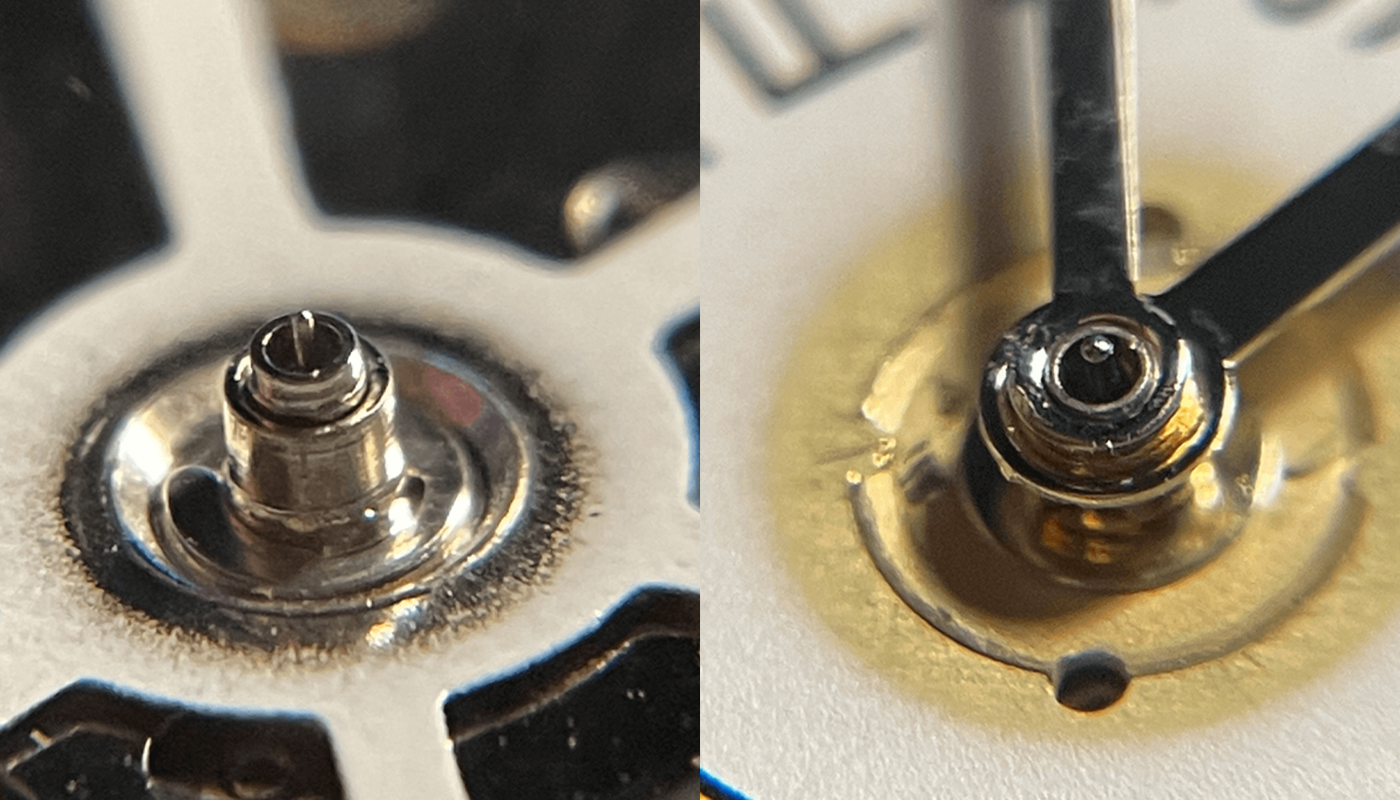

Dial Hands
While the size of the hour hand will fit on both movements. The size of the minute hand and second hands are different. The minutes hand only has a small difference but a 2836 minute hand (0.90mm) will not fit over the larger 1.00mm post on the 2813. Its best to purchase the correct hand size. It is alot easier to apply the second hand onto the 2836 movement (right) as it is 0.25mm vs 0.17mm on the 2813 movement. It may not seem a big difference but alot more skill is required.
Frequently asked questions
What is the difference between the 2813 and 2836 movements?
The 2813 is a date-only movement running at 21,600 bph (6 beats per second), while the 2836 adds a day function and runs at 28,800 bph (8 beats per second). The higher beat makes the 2836 smoother but more expensive.
Are 2813 and 2836 watch hands interchangeable?
Only the hour hand fits both. The 2836 minute hand (0.90 mm) will not fit the larger 1.00 mm post on the 2813, and the seconds hands are 0.17 mm on the 2813 versus 0.25 mm on the 2836, so buy the correct hands for each movement.
Which is easier to build with, the 2813 or the 2836?
The 2813 has the easier stem removal, needing only a press of the release hole with tweezers. The 2836 is easier when fitting the seconds hand because its 0.25 mm post is less fiddly than the 0.17 mm post on the 2813.
Can you fit a date wheel overlay to a 2813 or 2836?
Yes. On both movements the date wheel sits above the top of the movement, so a date wheel overlay clears it easily.
Is the 2813 or 2836 noisier?
Both have a noisy rotor, but the 2813 is a lot noisier than the 2836.
